Motor Controllers

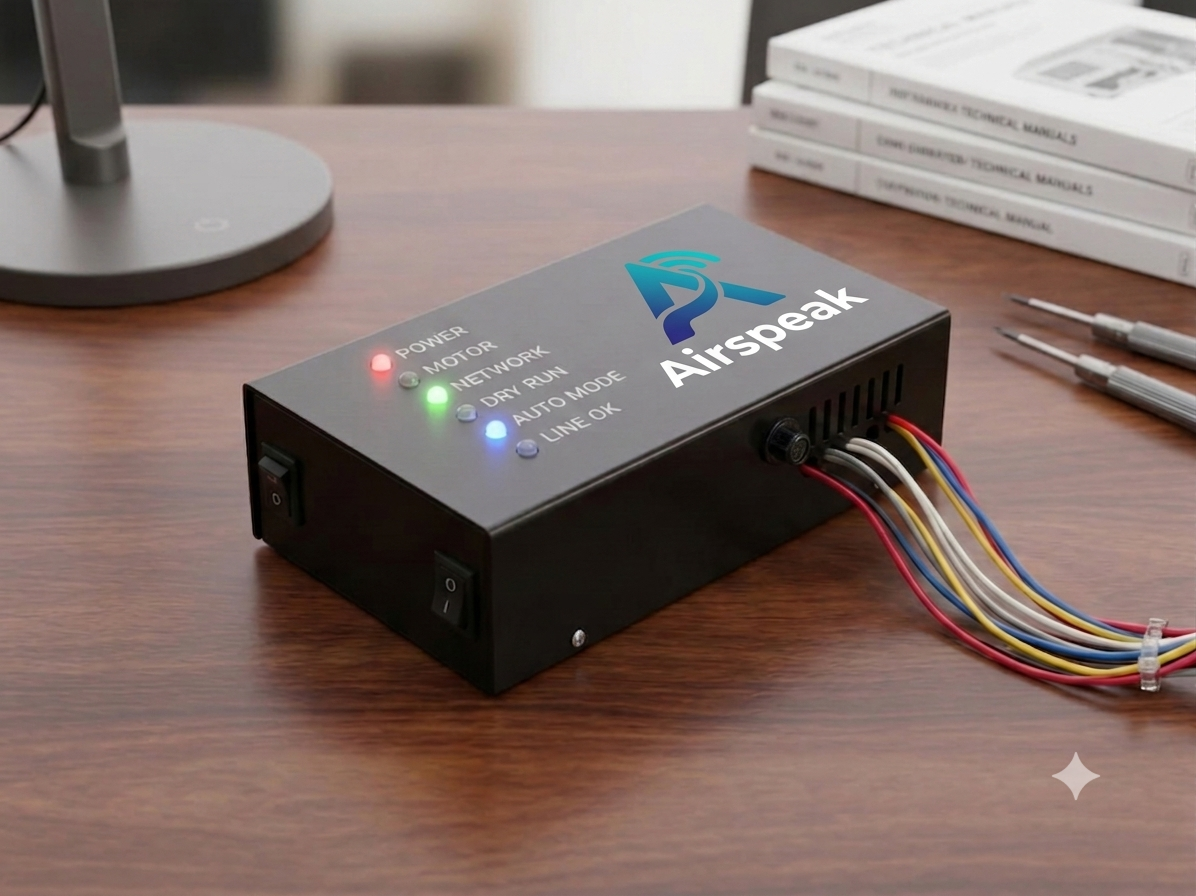

3 Phase 4g Motor Controller
Our premium 3 Phase Motor Controller is designed for heavy-duty industrial applications. Features comprehensive protection against overload, phase failure, and voltage fluctuations. Built with high-quality components for reliable 24/7 operation in demanding environments.
₹5,999✓ In Stock
Key Features
- Auto/Manual mode selection
- Remote start/stop capability
- Phase sequence protection
- Adjustable overload settings
- Dry run protection
- Built-in soft start option

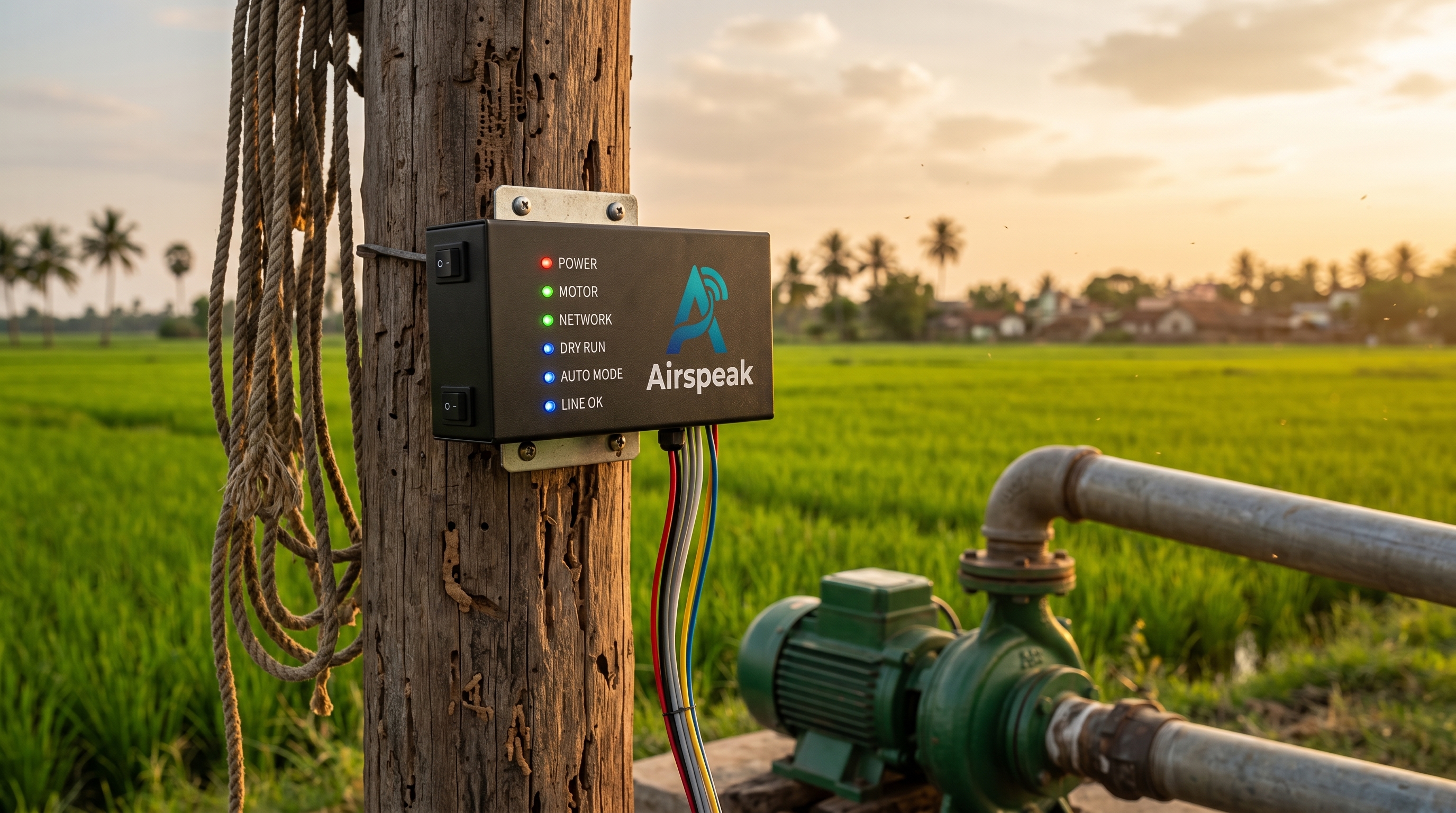

- Suitable for borewell, submersible, and agricultural pumps
- Industrial-grade protection and reliability
- Cloud dashboard with historical data and analytics
- Motor ON/OFF history
- Historical performance data directly from the mobile app.
Technical Specifications
Voltage Range380V - 440V AC
Current RatingUp to 100A
Frequency50/60 Hz
ProtectionOverload, Phase Failure, Under/Over Voltage
DisplayLED Status Indicators
EnclosureIP54 Rated
Operating Temp5°C to 60°C
Warranty1 Years
Connectivity4G LTE (M2M SIM)
Network TypeIndustrial M2M SIM
Control RangeWorldwide
Real-Time MonitoringYes
Voltage MonitoringRY, YB, BR Phase Monitoring
Current MonitoringUp to 60A (CT Based)
Dry Run ProtectionYes
Overload ProtectionYes
Over Voltage ProtectionYes
Under Voltage ProtectionYes
Phase Failure ProtectionYes
Reverse Phase ProtectionYes
Auto RestartConfigurable
Fault NotificationsInstant App Alerts
Data LoggingCloud-Based
User ManagementMulti-User Access
Firmware UpdatesOTA (Over-The-Air)
SIM Validity6 Months Free M2M Recharge Included
Cloud ConnectivitySecure IoT Cloud Platform
Firmware Versionv1.1.2
Running HistoryMotor ON/OFF Logs & Runtime History Available in App
Activity LogsView Past Operations, Faults & Alerts
